DAC-3T

모델명 DAC-3T
제조사
용도
문의전화
Product Description

Features

  • - Easy changeable insert tip
  • - Multi purpose process because of various insert tips (liner or curve)
  • - Specially used in the filed of ship building or heavy industries for trimming process of steel plate edge
  • - Easy to use due to a same body casing with an angle grinder





For Use Attention

  • - Before using, read manual supplied with tool.
  • - Wear ear and eye protection.
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms.
  • - Use only standard accessories.



Specification

Model Capacity Max.
power
Cutting
speed
Tip Max.
free speed
Length Weight Thread
air inlet
Average
air consumption
Noise Recommended
air pressure
Fillet
(‘R)
Min.
radius(‘R)
HP W m/min EA RPM in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DAC-3T 3.0mm 17mm 0.7 522 2-3 3 10,000 10.2 260 7.49 3.4 PT 1/4 21.1 0.6 95 85 6

← → You can scroll left and right.



Recommended Arrangement of Air Piping



Recommended-Arrangment-of-Air-Piping

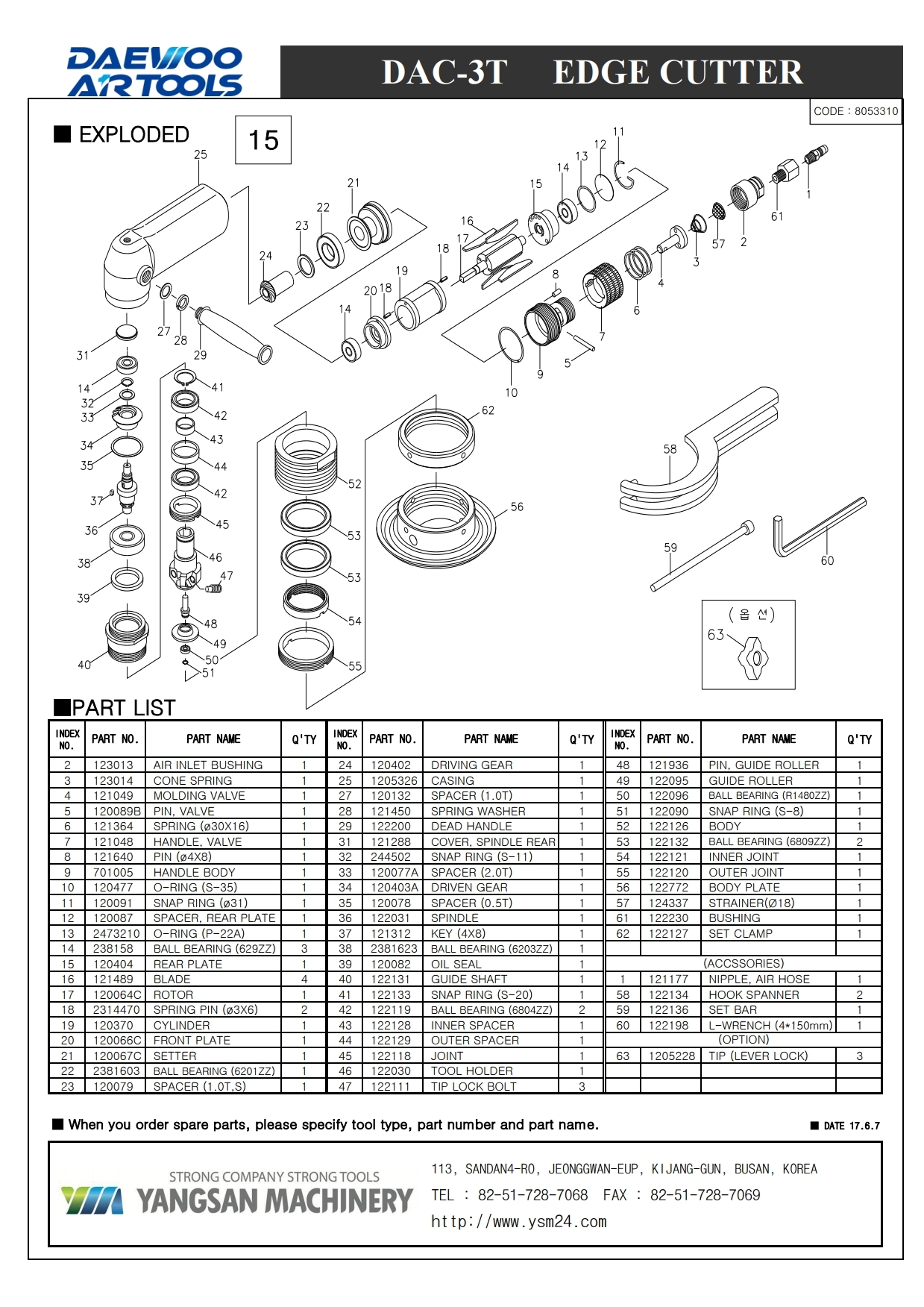

Exploded
DAC-3T_exploded
