DAG-4SX-1

모델명 DAG-4SX-1
제조사
용도
문의전화
Product Description

Features

  • - Long hand grip with adaptor
  • - Exhaust air direction 45 degree front side
  • - Safety Roll type one the On/Off valve



For Use Attention

  • - Before using, read manual supplied with tool
  • - Wear ear and eye protection
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms
  • - Use only standard accessories

Size

Model Capacity(wheel size) Max.free speed Max.power Length Weight(without wheel) Thread air inlet Average air consumption Noise Recommended air pressure
in mm RPM HP W in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DAG-4SX-1 4 100 11,000 0.7 520 8.2 210 3.3 1.5 PT 1/4 23.8 0.6 88 85 6

← → You can scroll left and right.

Recommended Arrangement of Air Piping

Recommended-Arrangment-of-Air-Piping

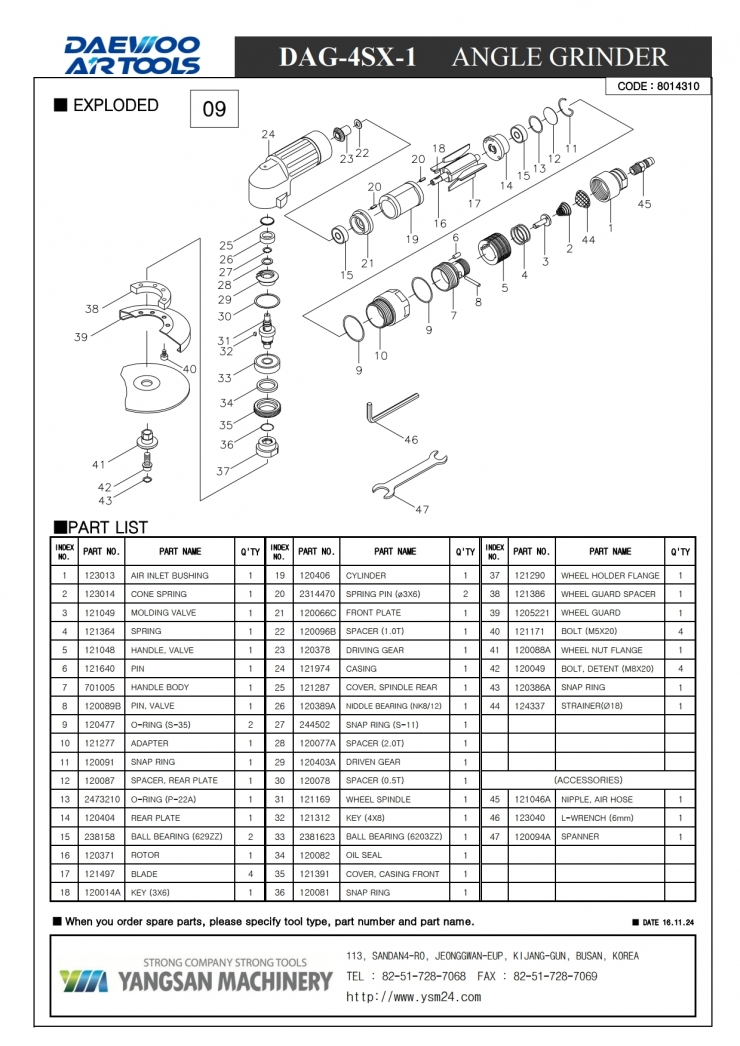

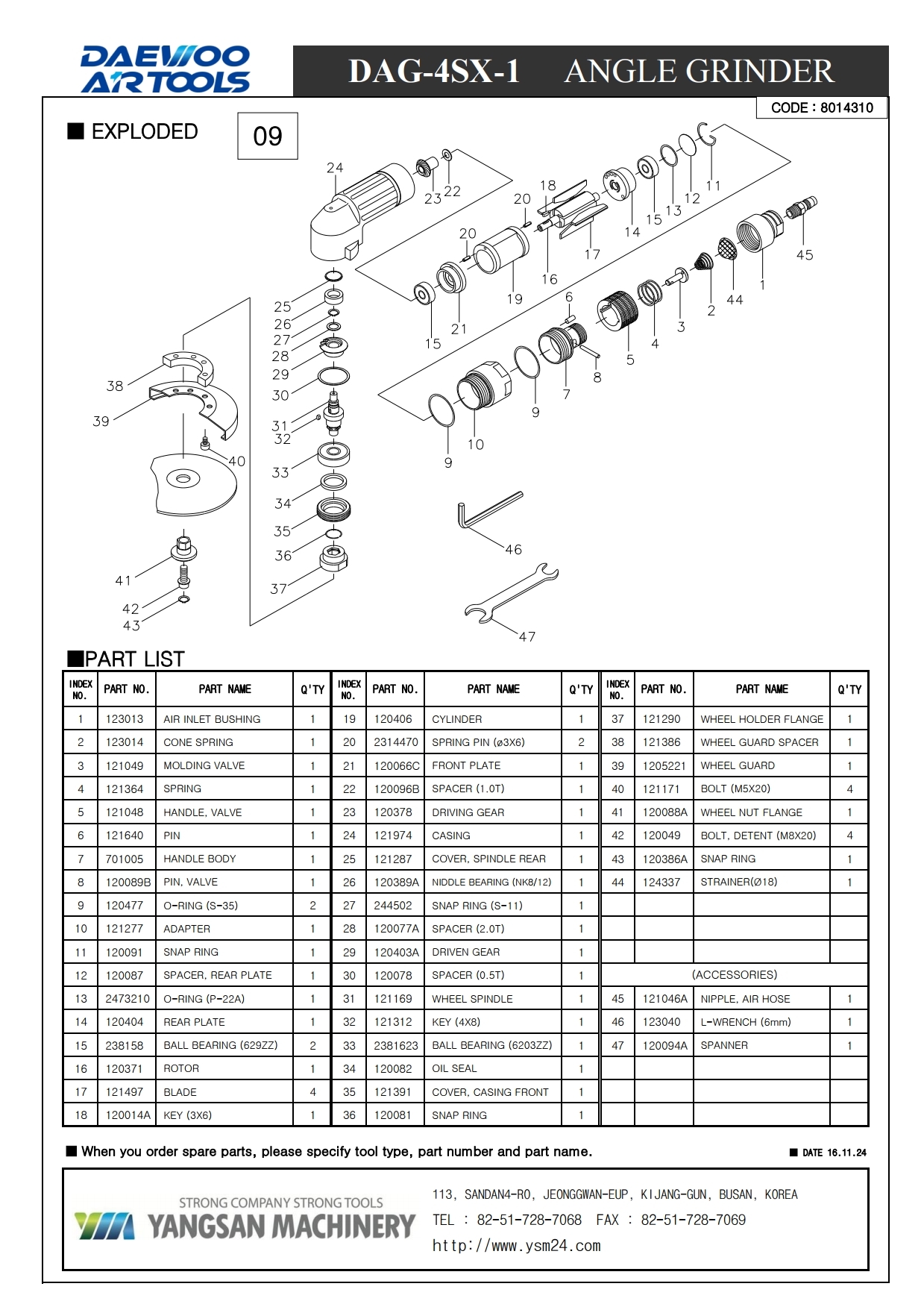

Exploded

DAG-4SX-1_exploded
