DAG-6LXAT (External thread)

모델명 DAG-6LXAT (External thread)
제조사
용도
문의전화
Product Description

Features

  • - The external thread spindle(M14)
  • - Excellent grip by the ergonomic design
  • - Safety by the over-speed controller(Governor)
  • - Protection from hazard by the safety lever, which controls the operation of air tools
  • - Used abroad (America and Europe)



For Use Attention

  • - Before using, read manual supplied with tool
  • - Wear ear and eye protection
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms
  • - Use only standard accessories

Size

Model Capacity(wheel size) Max.free speed Max.power Length Weight(without wheel) Thread air inlet Average air consumption Noise Recommended air pressure
in mm RPM HP W in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DAG-6LXAT 7 180 7,600 1.4 1,040 12 306 6.39 2.90 PT 3/8 33 0.9 80 85 6

← → You can scroll left and right.

Recommended Arrangement of Air Piping

Recommended-Arrangment-of-Air-Piping

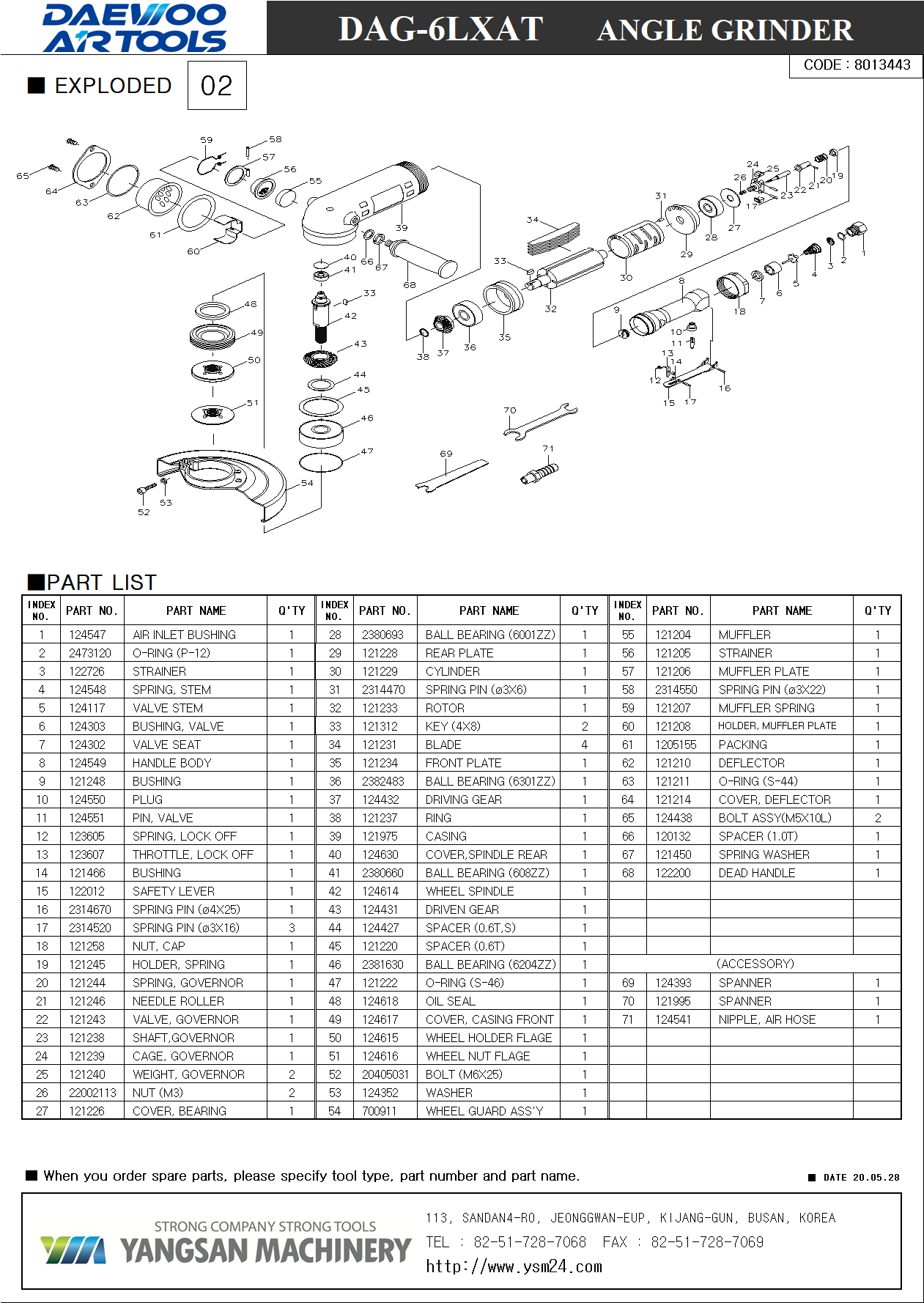

Exploded

DAG-6LXAT_exploded
