DIW-5P (3/8″)

모델명 DIW-5P (3/8″)
제조사
용도
문의전화
Product Description

Features

  • - Double hammer type
  • - Controllable the rotation direction by one hand
  • - High productivity due to light weight, compact design
  • - Two stage trigger control the RPM
  • - Quiet operation with a silencer
  • - Rear exhaust





For Use Attention

  • - Before using, read manual supplied with tool.
  • - Wear ear and eye protection.
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms.
  • - Use only standard accessories.



Specification

Model Hex size Bolt size Max.
free speed		 Max. torque Length Weight Thread
air inlet		 Average
air consumption		 Noise Recommended
air pressure
in mm size RPM kg.m N.m in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DIW-5P 3/8 9.5 M5-M8 12,000 17 167 5.05 148 1.98 0.9 PT 1/4 10.5 0.3 90 85 6

← → You can scroll left and right.



Recommended Arrangement of Air Piping



Recommended-Arrangment-of-Air-Piping

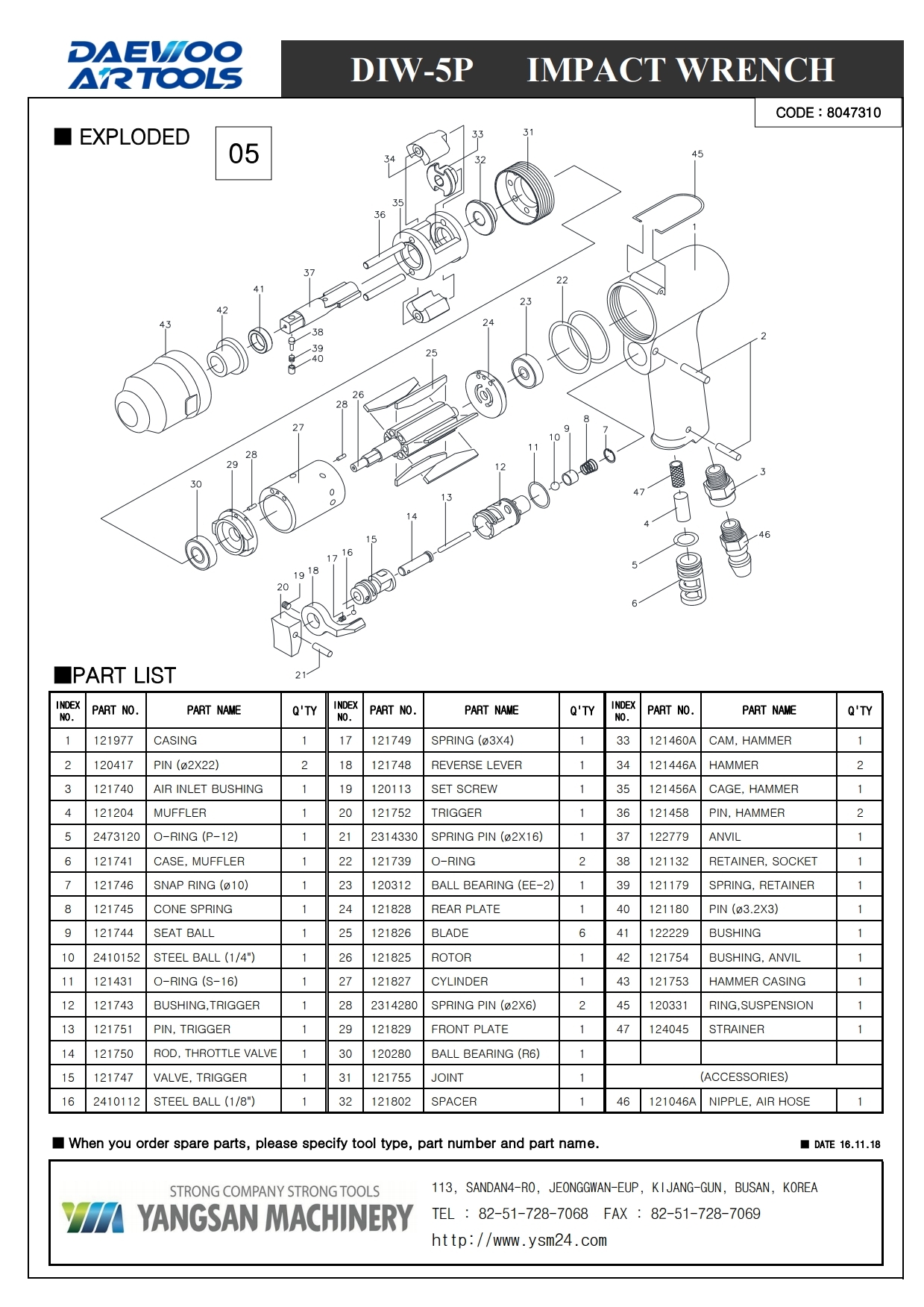

Exploded
DIW-5P_exploded
